T-9008AC




Output shaft nut spanner socket
5R110W Torqshift



The 5R110W Torqshift. When used in 4-wheel drive applications it must make use of a large spanner nut that also serves as the inner surface for the output shaft seal. This nut must be removed for complete disassembly of the transmission.

The design of this nut requires a “spanner wrench” in the form of a large 1/2” drive socket. Made of heavy duty steel, the pins are a great fit and should never need replacement!

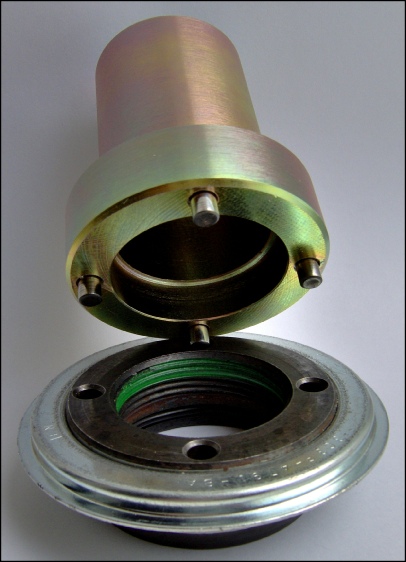

T-9008AC is pictured with the nut for reference. A challenge to remove it without one of these!

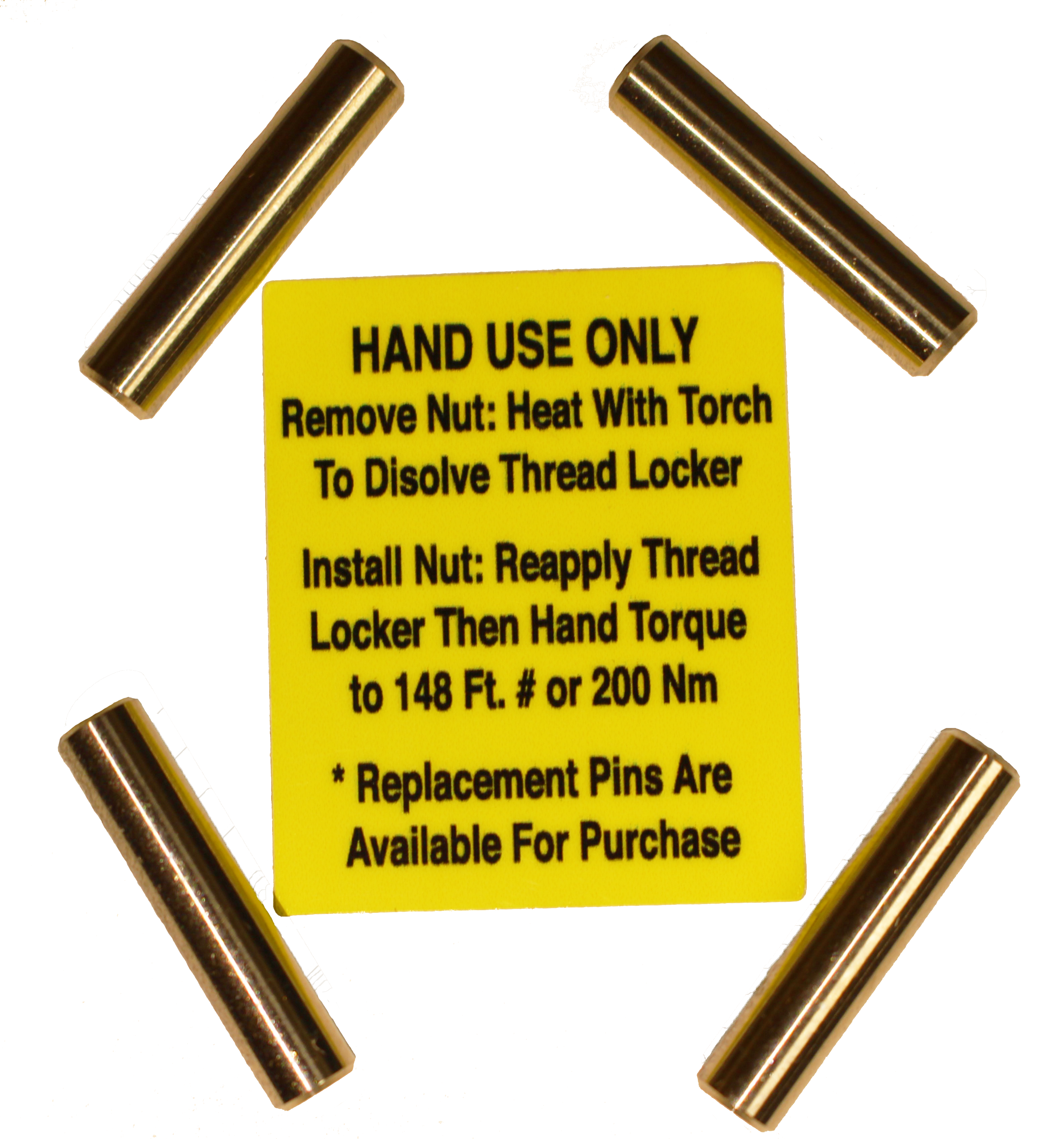

Replacement pins available as part number

5R110PINS




The Right Tool For The Job.
